Item Code: PM-SCLS-2
Regular price
$59.95
Sale price
$59.95
Shipping calculated at checkout.

Overview

With incredible clamping power from the Tough-Claw Clamp, the PIVOT Claw Mount will not lose its grip, ensuring that your device remains exactly where you mounted it regardless of flight conditions. The clamp is available in two sizes: The small clamp works on round, square, and odd-shaped rails and bars ranging from 0.625” to 1.5” in diameter, and flat surfaces ranging from 0” to 1.14” in thickness. It is also available with an extended arm for applications that require a little more reach. The medium clamp works on round, square, and odd-shaped rails and bars ranging from 1” to 1.875” in diameter, and flat surfaces ranging from 0” to 1.6” in thickness. High strength composite and stainless-steel hardware ensures durability and reliability in the most demanding environments. Ideal for applications where space is at a premium. Order now!

Caution: Always ensure freedom of flight control movement before attempting to fly with any mount attached to the aircraft yoke.

In a hurry? Expedite processing of your order with Queue Jumper. For a full explanation of our shipping policies, Click Here

Features
  • Tough-Claw Clamp: The small claw is designed to clamp to round, square, and odd-shaped rails and bars ranging from 0.625” to 1.5” in diameter, and flat surfaces ranging from 0” to 1.14” in thickness. The medium claw works on round, square, and odd-shaped rails and bars ranging from 1” to 1.875” in diameter, and flat surfaces ranging from 0” to 1.6” in thickness.
  • Durable: High strength composite and stainless-steel hardware for durability and reliability in the most demanding environments. Ideal for applications where space is at a premium.
  • Complete Mounting Solution: Includes all hardware necessary to mount a PIVOT case in virtually any aircraft, vehicle, or other location where the clamp can be attached.
  • PIVOT Click-Connect: Quickly and securely attaches to any PIVOT case.

(Always ensure freedom of flight control movement before attempting to fly with any mount attached to the aircraft yoke)

Tech Specs

Dimensions

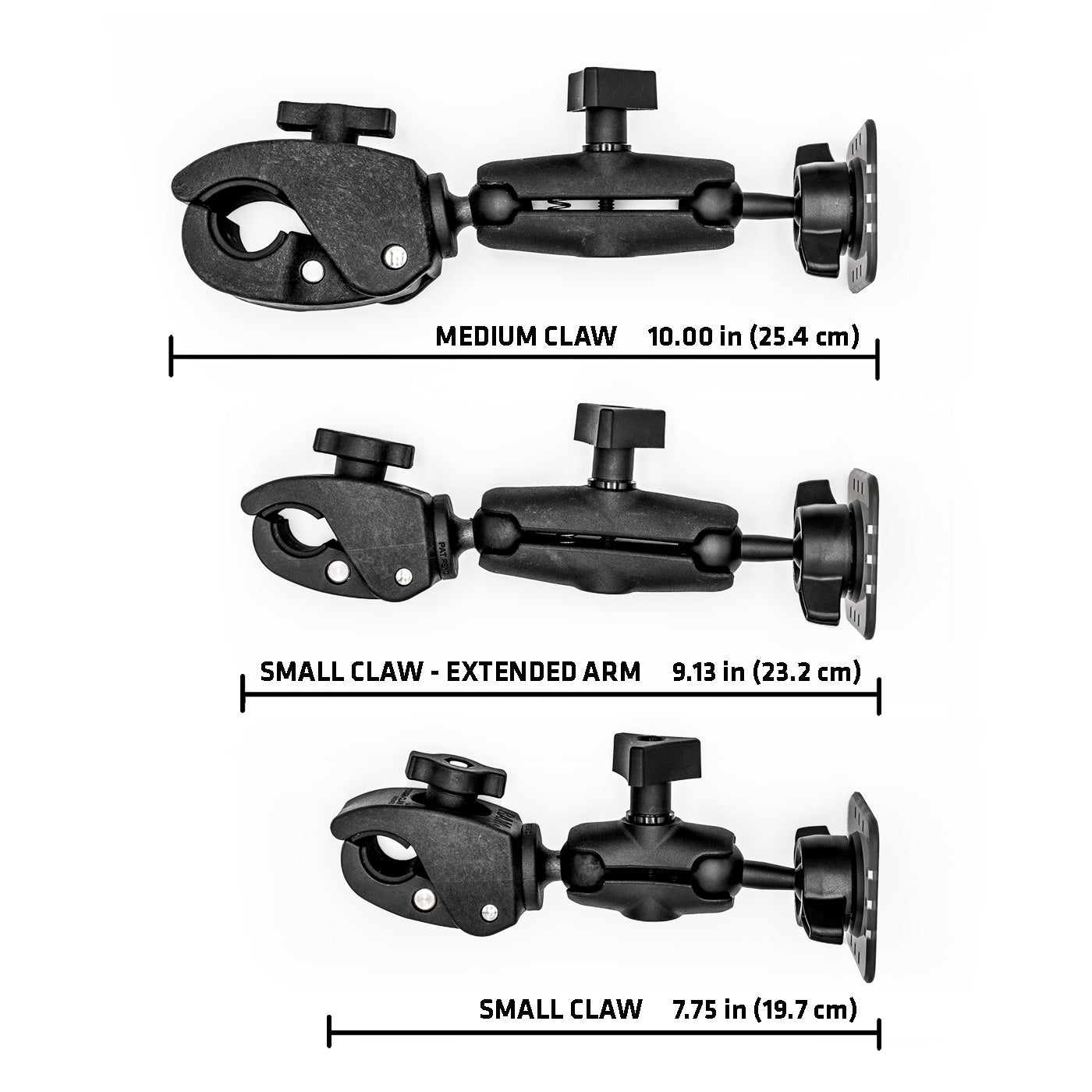

Overall Length:

Small Claw Mount: 7.75 in (19.7 cm),

Small Claw Mount - Extended Arm: 9.13 in (23.2 cm)

Medium Claw Mount - 10.00 in (25.4 cm)

Weight

Small Claw Mount: 9.91 oz (0.281 kg)

Small Claw Mount - Extended Arm: 11.46 oz (0.325 kg)

Medium Claw Mount - 15.97 oz (0.453 kg)

Weight Capacity

2.0 lbs

Clamp Range

Round/cylindrical surfaces:

Small Claw: 0.625" - 1.5" outer diameter, Flat Surfaces: 0.00" - 1.14" in thickness

Medium Claw: 1” to 1.875” in outer diameter, Flat Surfaces: 0” - 1.6” in thickness

Materials

Tough-Claw: High-strength Composite Polycarbonate

Double-Socket Arm: Marine-grade Aluminum

Double-Ball Adapter: Marine-grade Aluminum

PIVOT PPK Mounting Plate: High-strength Polycarbonate

Compatibility

PIVOT Cases: All cases, past, present, and future.

Aircraft Compatibility:

Small Claw Medium Claw
Cessna Beechcraft
Piper* Piper*
Mooney

*Some older Piper models use thicker yoke rods and require the Medium Claw. If you are unsure which size Claw is most appropriate for your application, please measure yoke rod before ordering.

Documents

No supporting documents available. Contact us for more information.
